External LLVM for TriCore™ applications

Please ensure that you make all the necessary changes to the project before running it. Running the project without implementing all the changes can result in a corrupt build and may require starting the entire project from scratch. To avoid any issues, thoroughly review and implement all the proposed modifications before proceeding with the execution of the project. Please pay special attention to the C/C++ Indexer, see further down for more information.

Import existing project

To test if the LLVM HighTec compiler works correctly, let’s import one of the existing Infineon projects.

Select File → Import → Infineon → AURIX™ Development Studio Project and click Next.

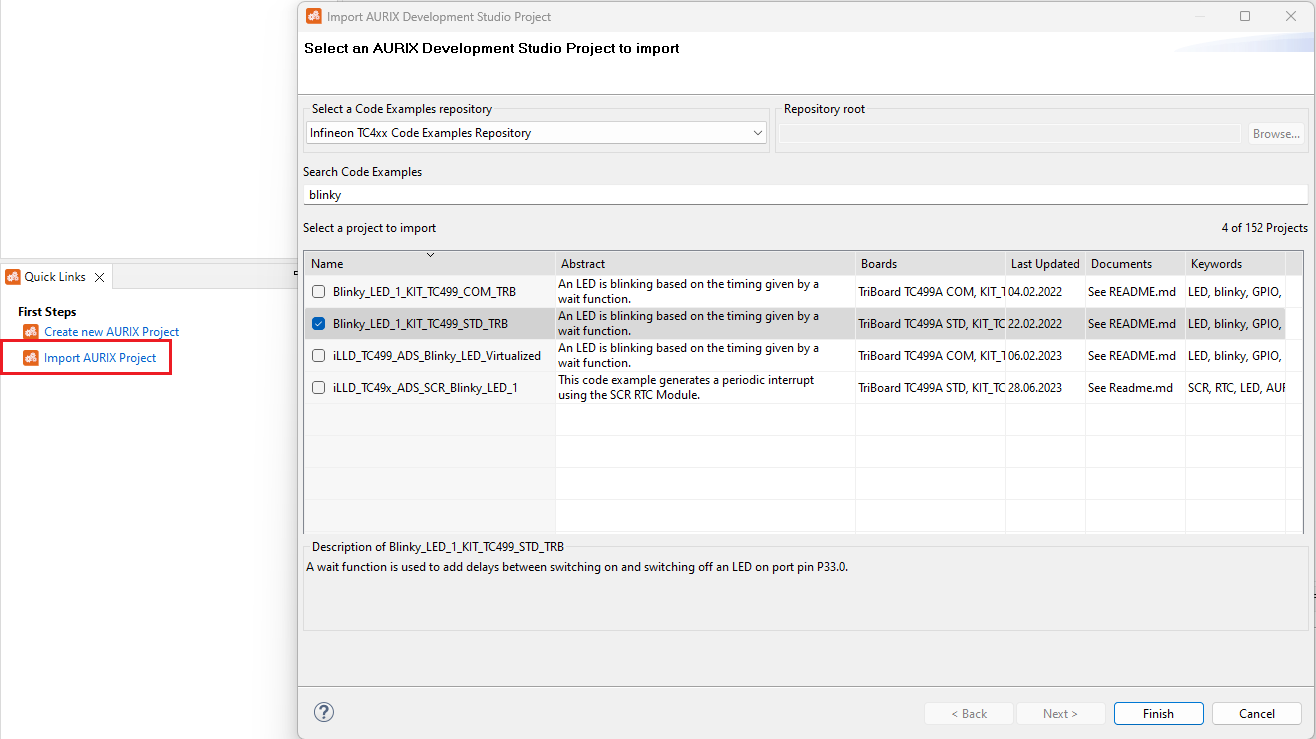

Fig. 1. Import Infineon example

Then select Infineon TC4xx Code Examples Repository, select an example of your choice (we will test the blinky example for STD Kit TC499) and click Finish.

Update iLLD

Update project libraries to the latest version and back up the current.

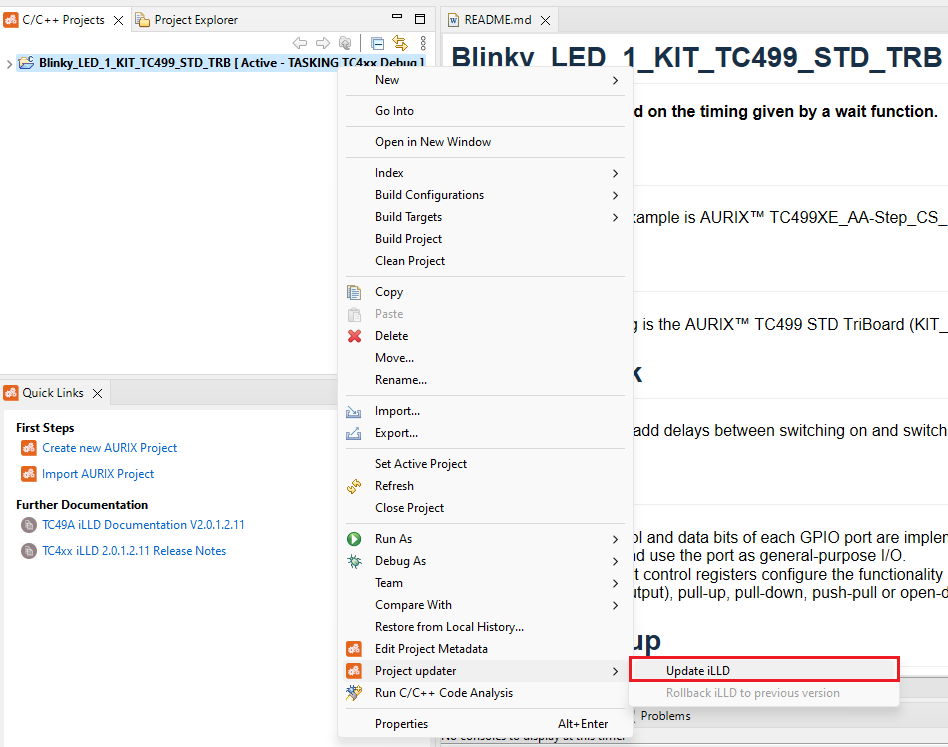

Right-click on the project, select Project updater → Update iLLD and click Finish.

Fig. 2. Update iLLD

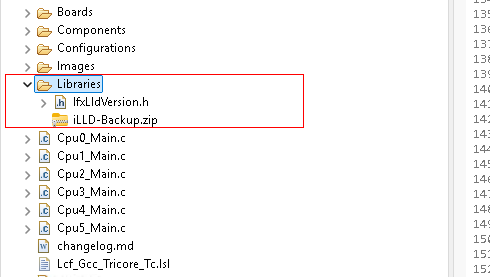

If updating the iLLD removes the driver directories from the Libraries folder, that iLLD version no longer supports your target hardware. To resolve this, "Rollback" to the previous working iLLD version.

Fig. 3. Not supported target

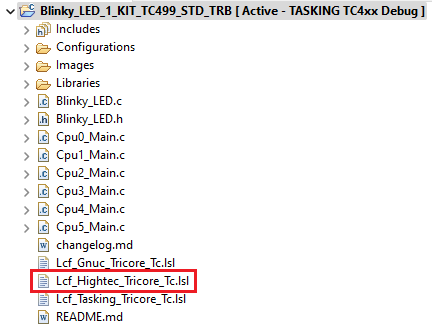

The latest version of the iLLD will also generate the correct linker script.

Fig. 4. Linker script

When the iLLD is updated, ADS executes the C/C++ Indexer. It needs to be finished before starting the build. Otherwise, there is a significant risk of the build failing.

Fig. 5. C/C++ Indexer execution in the lower-right corner

Manage build configuration

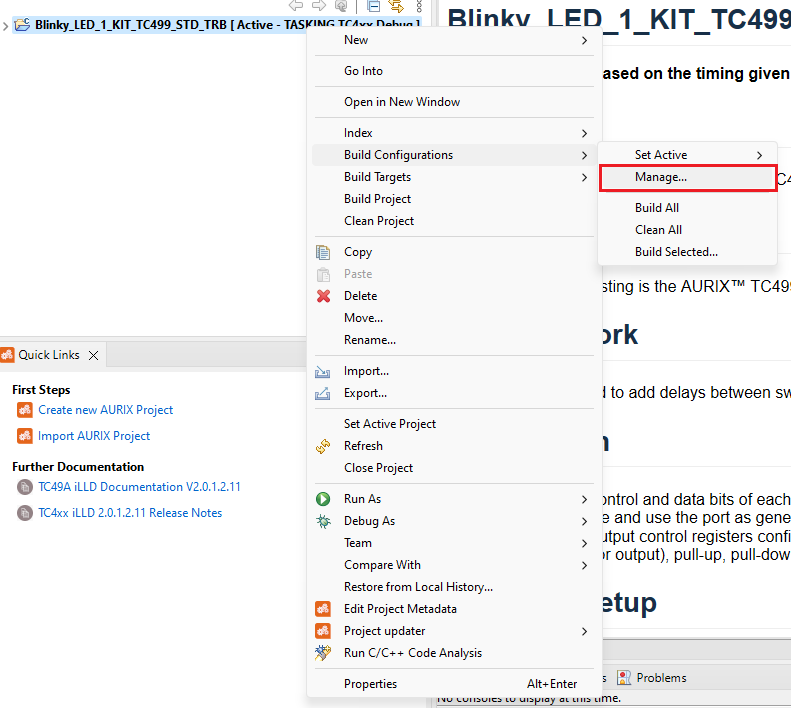

To create a new HighTec LLVM toolchain configuration, right-click on the project and select Build Configuration → Manage.

Fig. 6. Setting the manage build configuration

The Manage Configurations tab will be opened.

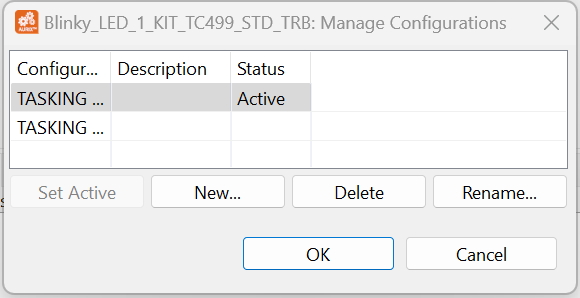

Fig. 7. Manage configuration tab

Select New and give a name to the new configuration. Then select Import predefined, choose TriCore Application → External LLVM → Debug and click OK.

Fig. 8. New configuration

Using a configuration name without spaces is recommended because AurixFlasher does not work reliably if there are spaces in the path to an elf file.

Activate build configuration

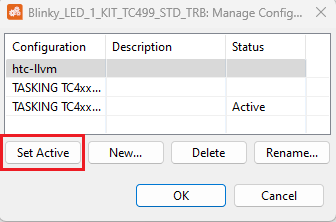

To select a new active configuration, right-click on the project and select Build Configuration → Set Active → HighTec (name of the new configuration created).

Fig. 9. Setting the active build configuration

Import linker script

After the iLLD update, the project linker script is replaced by a default one for the iLLD base project. If the linker script is not present after creating a new configuration, it is possible to get it from the latest version of the iLLD package and manually copy it into the project:

Target Latest iLLD

Target	Latest `iLLD`
`TC3xx`	`iLLD_TC3xx_V1_0_1_18_0_Package`
`TC4xx`	`iLLD-TC4-v2.1.1`

TC3xx

iLLD_TC3xx_V1_0_1_18_0_Package

TC4xx

iLLD-TC4-v2.1.1

Infineon Low-Level Drivers are available upon request from Infineon and contain a standardized linker script for LLVM toolchains.

Fig. 10. Imported Linker File

Build settings

The build settings must be updated for the active build configuration. To access the settings, right-click on the project and select Properties → C/C++ Build → Settings.

Apply toolchain

Under the Tool Settings → Settings tab, change the Prefix and Path fields:

The Prefix is always "empty" for the LLVM toolchain.
The Path must be set to the "bin" folder of the LLVM toolchain.

After the change is done, click Apply and close.

Fig. 11. Setting the prefix and path to the HighTec LLVM compiler

When the new toolchain is set, ADS executes the C/C++ Indexer. It needs to be finished before starting the build. Otherwise, there is a considerable risk of the build failing.

Fig. 12. C/C++ Indexer execution in the lower-right corner

Clang driver options

The C/C++ compiler driver clang is a complete control program for a large part of the toolchain. It can orchestrate the entire build of an executable with a single command-line invocation.

In ADS, the compiling and linking steps are done separately. For this reason, the following options must be used in both: LLVM C/C++ Compiler options and LLVM Linker options.

Function sections: -ffunction-sections: Place each function in its own section.

Minimal settings

    CC_OPTIONS= -ffunction-sections -merrata=cpu141
    CPP_OPTIONS= -ffunction-sections -merrata=cpu141
    ASM_OPTIONS= $(CC_OPTIONS)

Newer ADS versions include -ffunction-sections, -fdata-sections, and -march=tc18 in the C/C\++ compiler options.

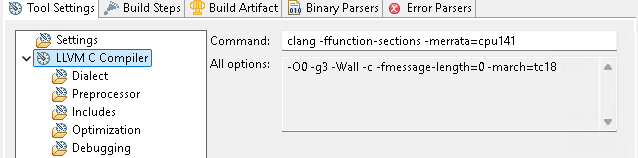

Fig. 13. Compiler settings

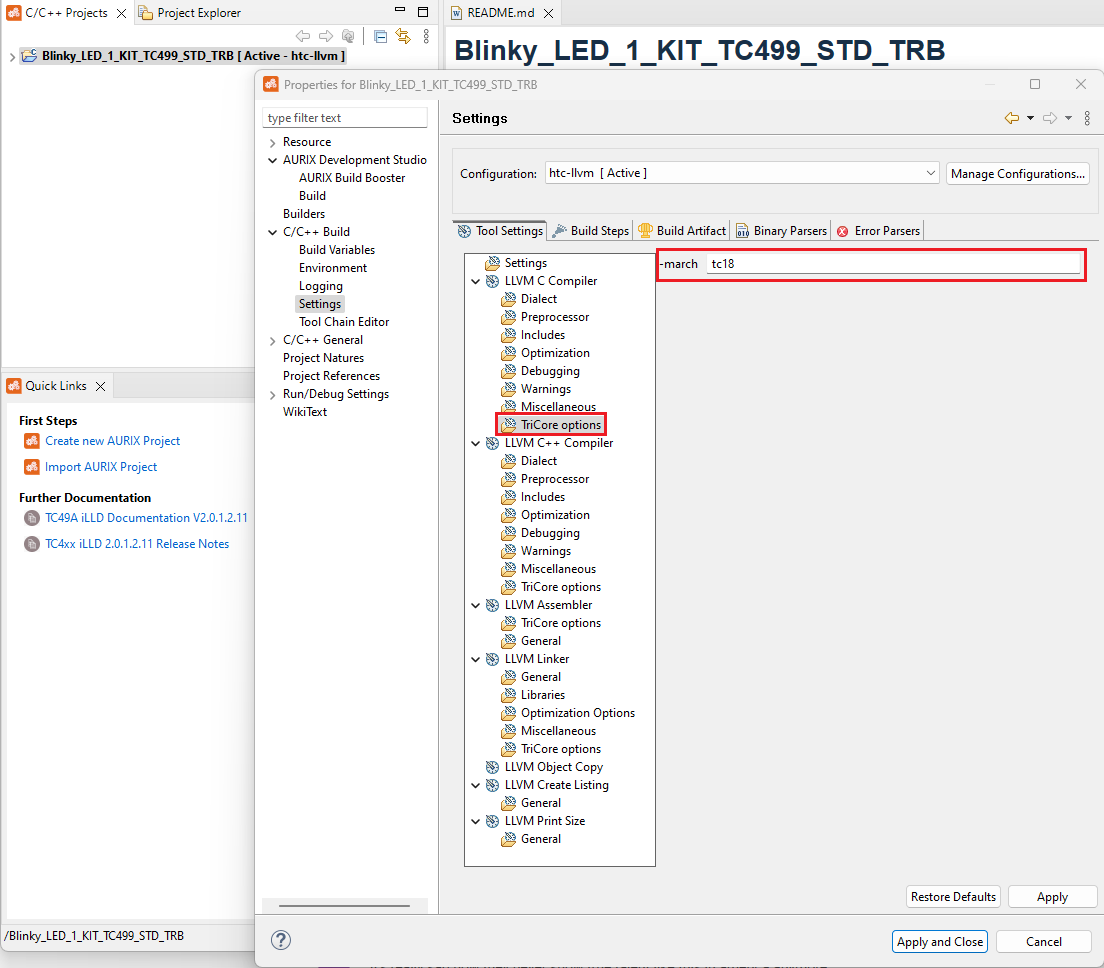

Fig. 14. Tricore options

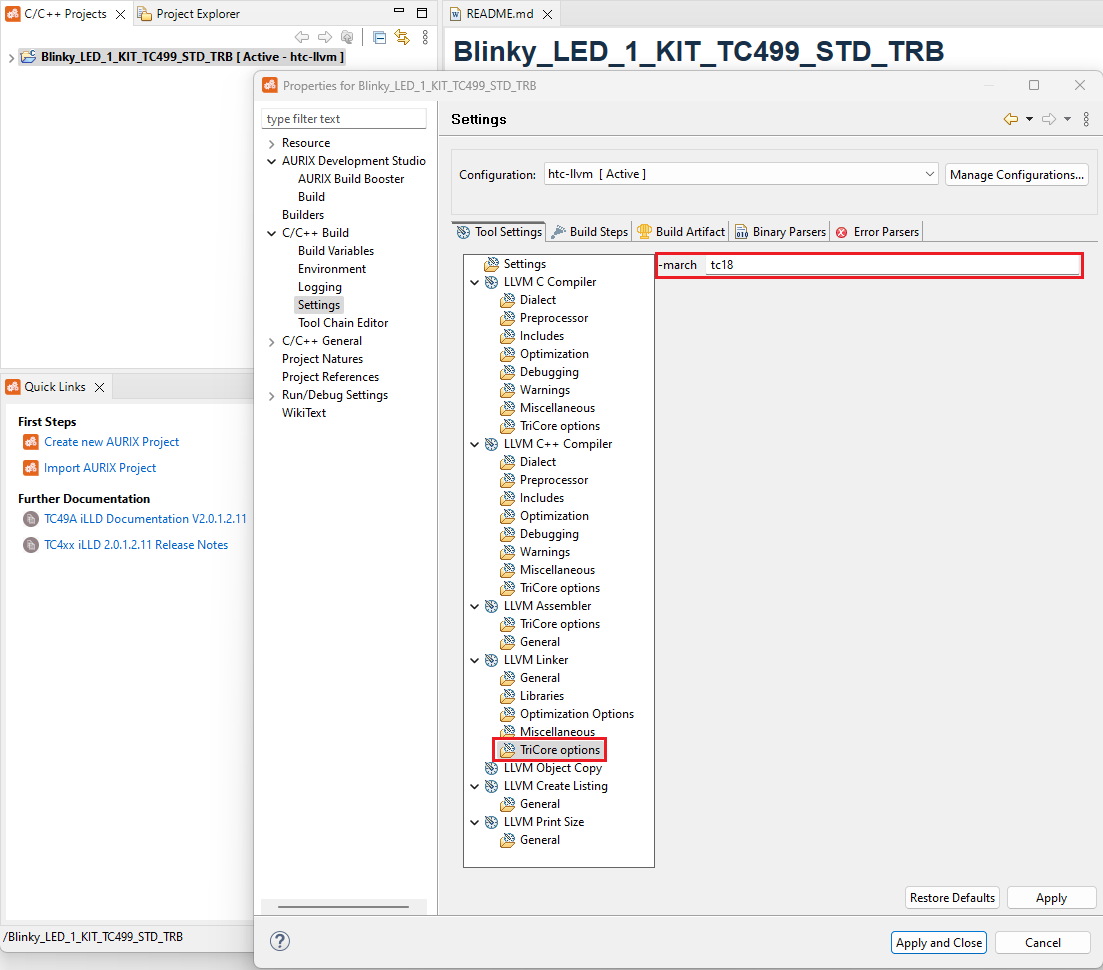

Fig. 15. Linker settings

Errata: -merrata=<bug>

Some derivatives contain silicon bugs, also known as errata. In such cases, the workaround has to be applied to avoid triggering them. This option also affects the selection of target libraries during the linking. Allowed values:

<bug> Description

<bug>	Description
`cpu141`	[CPU_TC.141] Instructions not implemented in TC49A derivative [1]

cpu141

[CPU_TC.141] Instructions not implemented in TC49A derivative [1]

Please refer to the Errata chapter in [2] for more details.

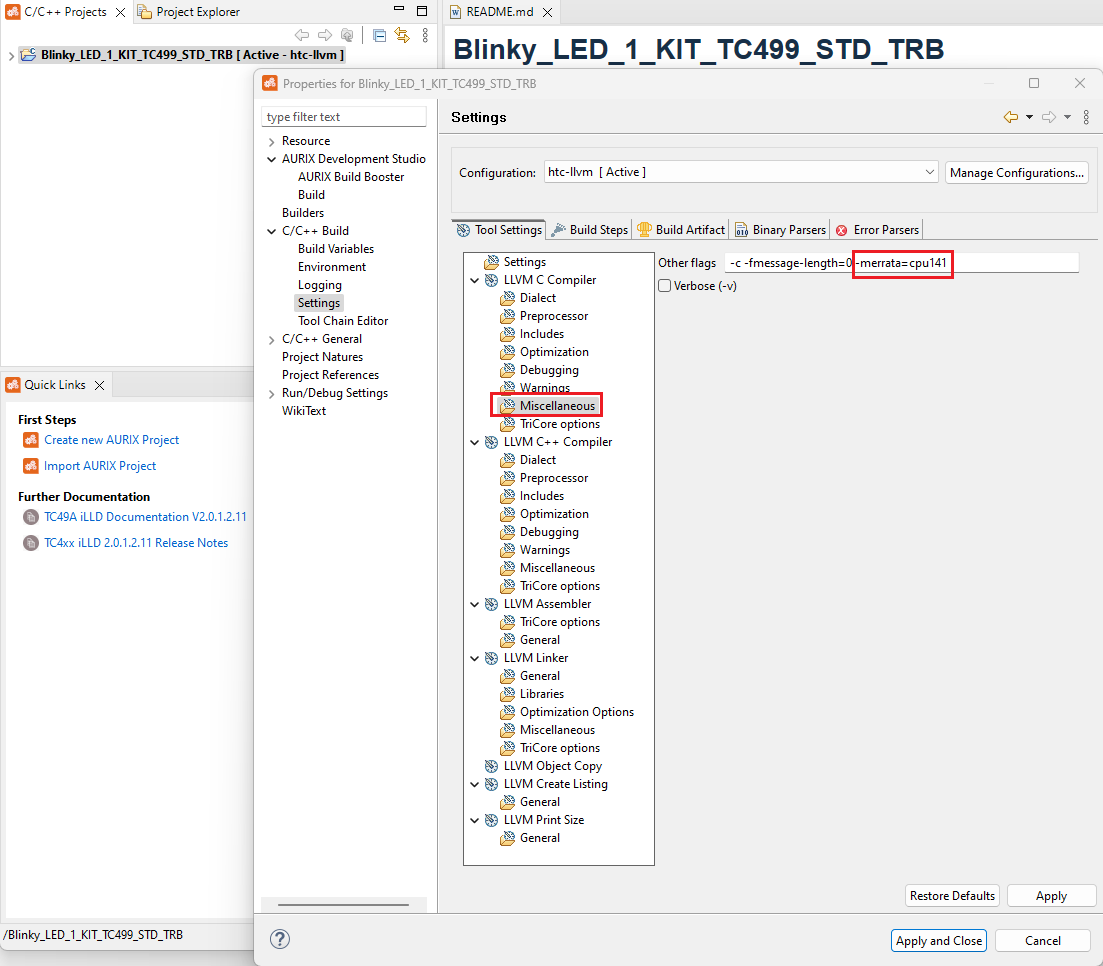

For compilation, extend the Other flags field in LLVM Compiler → Miscellaneous, i.e., -merrata=cpu141.

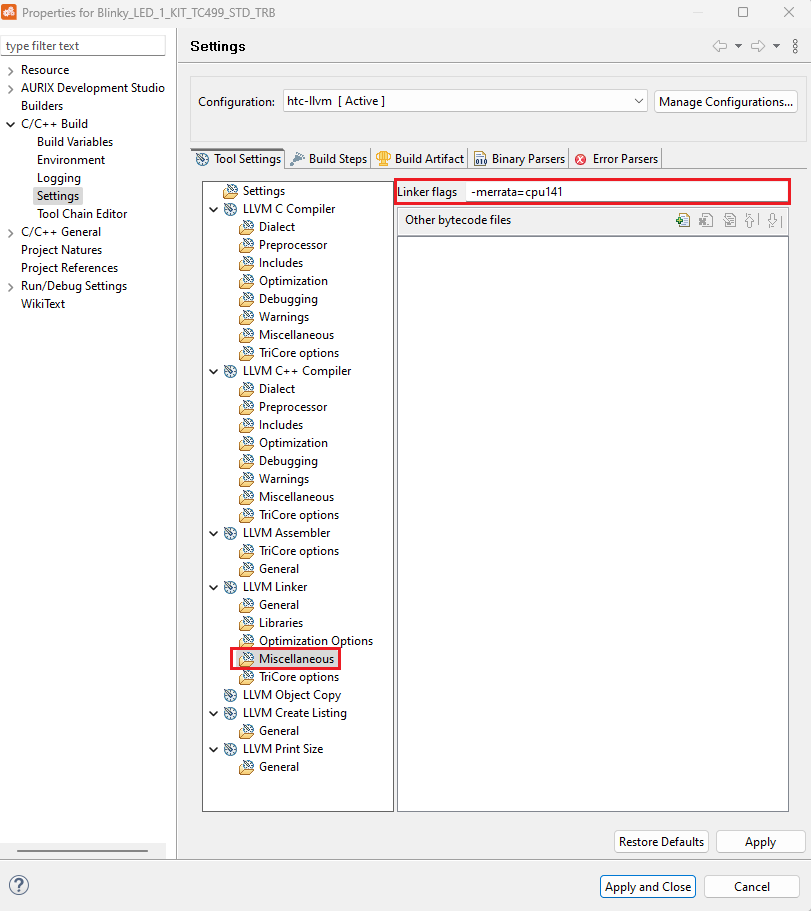

For the linking, extend the Other flags field in LLVM Linker → Miscellaneous, i.e., -merrata=cpu141.

Floating point strategy: mfloat-abi=<float-abi>

Select the floating point handling strategy for code generation: software function calls or hardware FPU instructions. The <float-abi> keyword has the following pattern:
<float-strategy><double-strategy><size-of-double> , i.e., hs64.
The letters represent the handling strategy for float and double floating-point types. The number is the size of the double type in bits. The possible combinations can be selected from the following table according to the -march=<arch>

<float-abi> float strategy double strategy double size Supported architectures Default for

<float-abi>	`float` strategy	`double` strategy	`double` size	Supported architectures	Default for
`ss32`	function calls	function calls	32	`tc18`
`hh32`	`FPU` instructions	`FPU` instructions	32	`tc161`, `tc162`, `tc18`
`ss64`	function calls	function calls	64	`tc18`
`hs64`	`FPU` instructions	function calls	64	`tc161`, `tc162`, `tc18`	`tc161`, `tc162`
`hh64`	`FPU` instructions	`FPU` instructions	64	`tc18`	`tc18`

ss32

function calls

tc18

hh32

FPU instructions

tc161, tc162, tc18

ss64

function calls

tc18

hs64

FPU instructions

function calls

tc161, tc162, tc18

tc161, tc162

hh64

FPU instructions

tc18

For more details, please refer to the Multilib variants chapter in [2].

For compilation, extend the Other flags field in LLVM Compiler → Miscellaneous, i.e., -mfloat-abi=hh64.
For the linking, extend the Other flags field in LLVM Linker → Miscellaneous, i.e., -mfloat-abi=hh64.

Exceptions: -f[no-]exceptions: Enable or disable the support for C++ exception handling. This flag also controls which libraries are linked. By default, exceptions are enabled.

For compilation, extend the Other flags field in LLVM Compiler → Miscellaneous, i.e., -fno-exceptions.
For the linking, extend the Other flags field in LLVM Linker → Miscellaneous, i.e., -fno-exceptions.

The exhaustive list of the compiler driver options can be found in the Compiler Driver chapter in [2].

Compiler-specific options

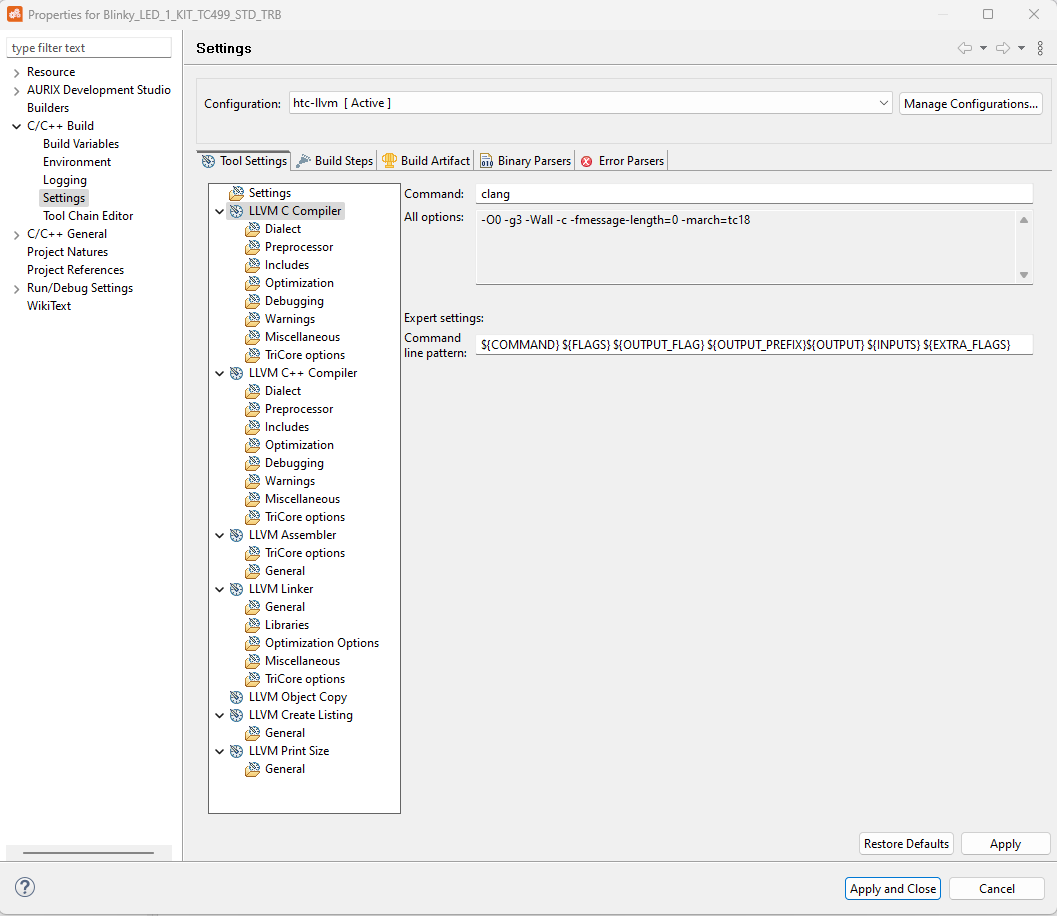

The Command is pre-set to clang in LLVM C Compiler.

Optimizations: -O<level>:

The compiler accepts the following optimization options: -O0, -O1, -O2, -O3, -Ofast, -Os, -Oz, -Og

Choose from the offered options or set the Other optimization flags field in LLVM Compiler → Optimization. In the second case, there are two optimization options in the build command, and the compiler will use the last one in the sequence, i.e., in clang -O0 -Ofast, -Ofast will be used.

Include paths:

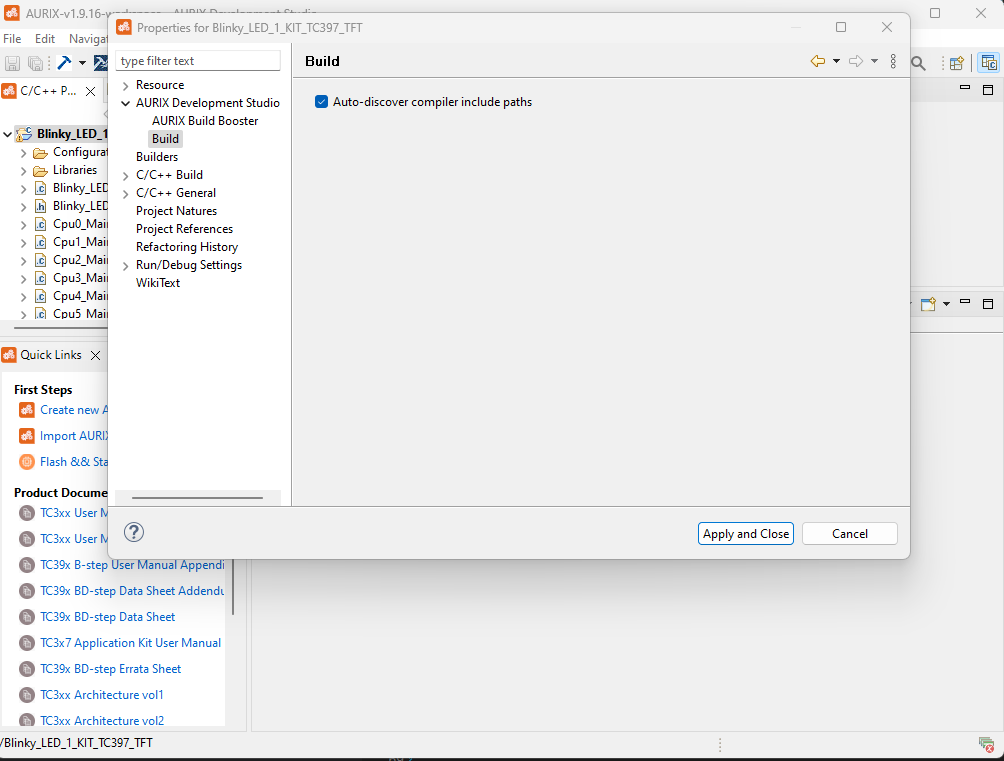

Right-click on the project and select Properties → Aurix Development Studio → Build check the box to auto-discover compiler include paths.

Fig. 16. Include paths

Note: The user might want to turn this feature off after the first build attempt. For more details see chapter Troubleshooting in the appendix.

Fig. 17. AURIX™ LLVM C Compiler Options

The exhaustive list of the compiler options can be found in the Compiler chapter of [2].

Linker-specific options

The Command is pre-set to clang in LLVM Linker.
Although clang understands and forwards most of the common linker options, some need to be passed directly to the linker. To pass an option to the linker, you should prefix the option with -Xlinker or -Wl,.

For example, option --gc-sections should be passed to the linker as -Xlinker˙ `--gc-sections or -Wl,--gc-sections.

    LD_OPTIONS= -Wl,--gc-sections

Linker script: -T<linker-script>

We use the linker script containing the Hightec keyword. The information on how to select and import it is described in chapter Linker script.

Set the field Linker Script in LLVM Linker → General, i.e., ../Lcf_Hightec_Tricore_Tc.lsl.

Libraries

Internal libraries: When using the clang compiler driver, the library paths are chosen based on the -march, -merrata, -mfloat-abi, and -f[no-]exceptions options. The libraries like C standard library, or C++ library, are automatically linked from these paths. Some functions from the C standard library reference the file IO functions.
External libraries: When linking external libraries, it is necessary to pass the library name with -l prefix: -l<lib> as well as the library path with -L prefix: -L<libpath>. To link, e.g., the "C:\tricore\libs\libbsp.a" library, the following parameters have to be passed to the linker: -lbsp and -LC:\tricore\libs.

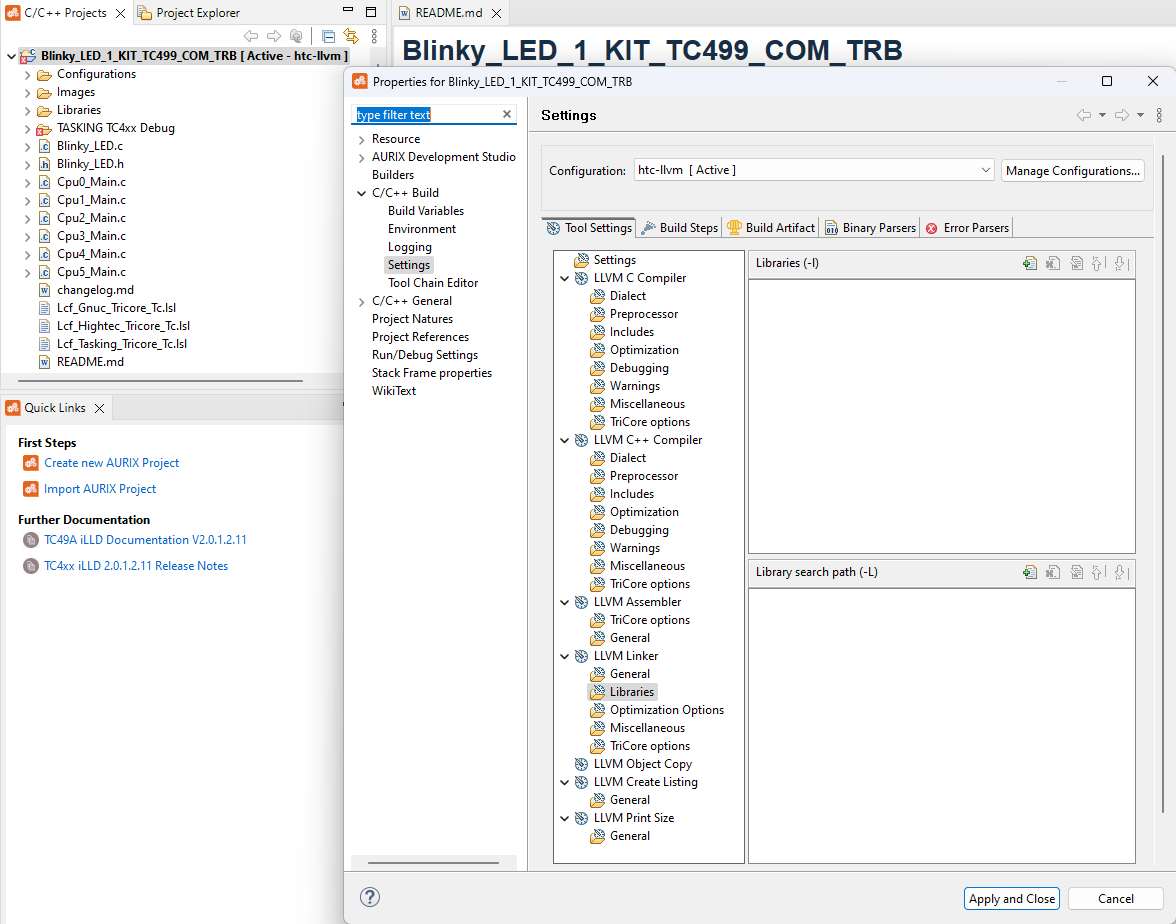

Add options -l<lib> and -L<libpath> in LLVM Linker → Libraries → Add to link an external library.

    LIBS=-lsemihost -merrata=cpu141

In case of TC49A without -merrata=cpu141 flag, the linker won’t find the correct folder. The correct is tc49a.

Incorrect:

    >>> referenced by tricore_exit.c.o:(_exit) in archive
    C:\HighTec\toolchains\tricore\v9.1.1\tricore\lib\tc18\hh64\except\libsemihost.a

Correct:

    C:\HighTec\toolchains\tricore\v9.1.1\tricore\lib\tc49a\hh64\except\libsemihost.a

AURIX Build Booster

Right-click on the project, then Properties → AURIX Development Studio → AURIX Build Booster → Libraries paths → Delete /Libraries/iLLD if present and click on Apply and close.

Remove /Libraries/Infra/Platform/ArcEV, /Libraries/iLLD/TC49A/ArcEV and /Libraries/iLLD/TC49A/Scr completely and skip the next two instructions.

Right-click on the project, then Properties → AURIX Development Studio → AURIX Build Booster → Ignore paths → Add the following folders and click on Apply and close.
- /Libraries/Infra/Platform/ArcEV
  /Libraries/iLLD/TC49A/ArcEV
  /Libraries/iLLD/TC49A/Scr

Fig. 18. Ignore paths

Right-click on the project, then Properties → C/C++ General → Paths and Symbols → Includes → GNU C, and ensure that the include paths do not contain any of the following directories and their subdirectories, click on Apply and close.
- /Libraries/Infra/Platform/ArcEV
  /Libraries/iLLD/TC49A/ArcEV
  /Libraries/iLLD/TC49A/Scr
One by one, Right-click on the following directories, then Resource Configuration → Exclude from build → Select your build configuration and click OK (some may already have been disabled).
- /Libraries/Infra/Platform/ArcEV
  /Libraries/iLLD/TC49A/ArcEV
  /Libraries/iLLD/TC49A/Scr

LLVM Object Copy options

llvm-objcopy is pre-set.

An exhaustive list of Binutils options can be found in the Binutils chapter of [2].

Fig. 19. LLVM Object Copy Options

LLVM Create Listing options

llvm-objdump is pre-set.

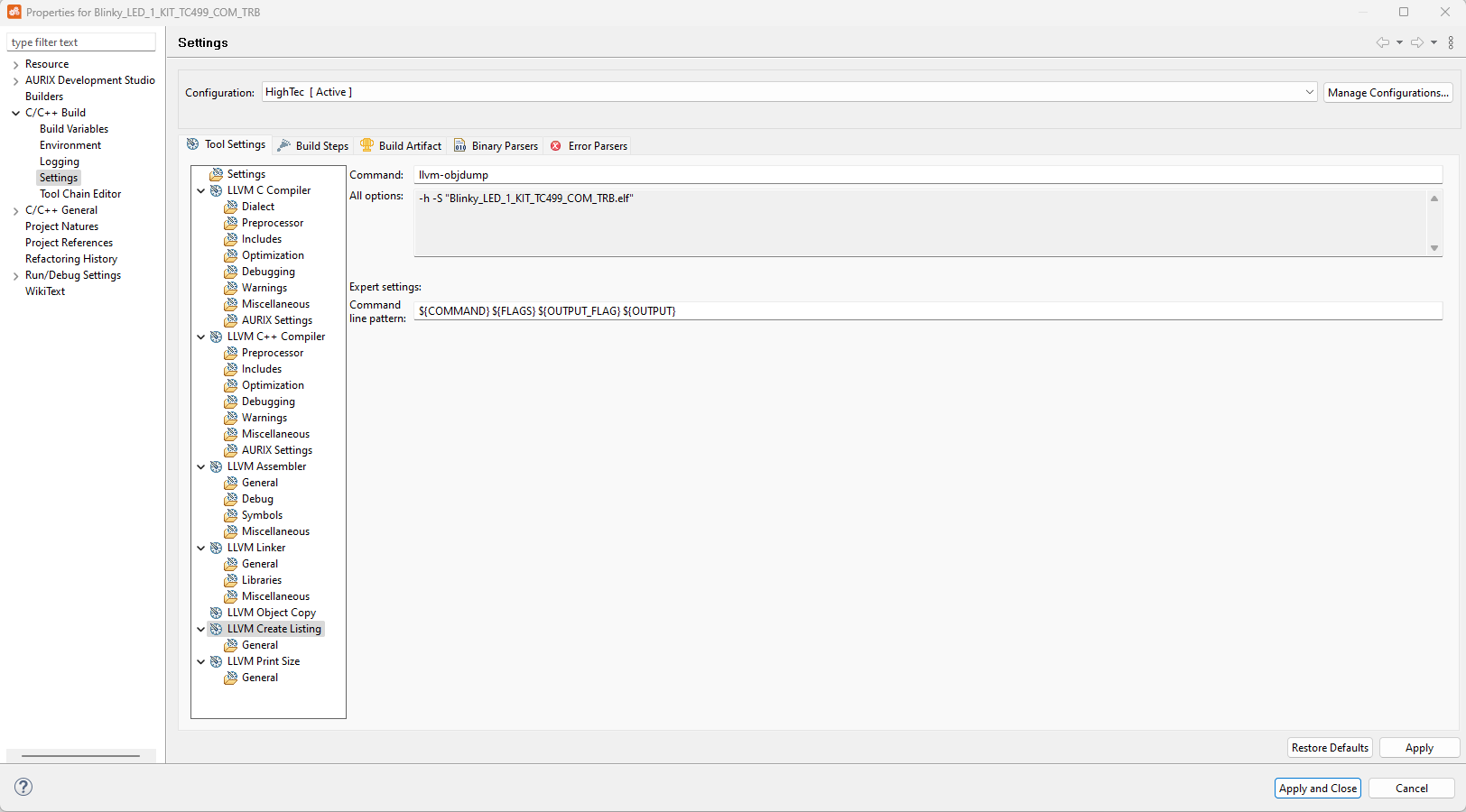

Fig. 20. LLVM Listing Options

An exhaustive list of `Binutils˙ options can be found in the `Binutils˙ chapter of [2].

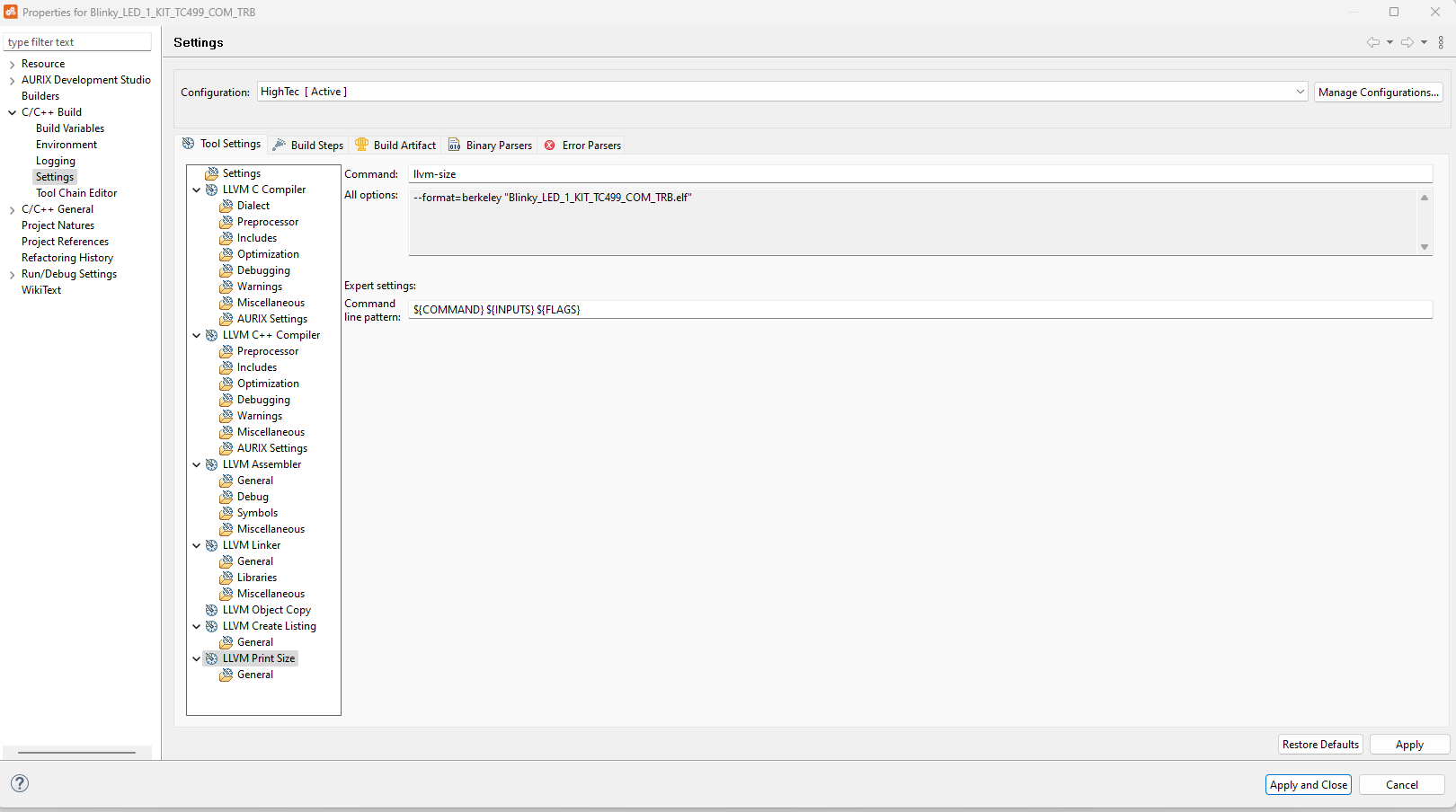

LLVM Print Size options

llvm-size is pre-set.

Fig. 21. LLVM Print Size Options

An exhaustive list of `Binutils˙ options can be found in the `Binutils˙ chapter of [2].

LLVM v9.0.0 and iLLD 2.0.1.3.5

As of version 2.0.1.3.5 the iLLD source code is not yet adopted to work with some changes introduced in LLVM toolchain v9.0.0. The following sections will describe the minor modifications needed to make examples work with versions 9.0.0 and up. These changes have been implemented in new versions of iLLD. If you are using v2.1.1 or never you don’t have to apply them.

Ifx_Ssw_Infra.c

The C++ initialization function needs to be modified. It is named void Ifx_Ssw_doCppInit(void) and can be found in /Libraries/Infra/Ssw/TC4xA/Tricore/Ifx_Ssw_Infra.c. The user needs to change all references from process_init_array(void) and process_fini_array(void) to libc_init_array(void) and libc_fini_array(void) respectively. The result should look like this:

#elif defined(__HIGHTEC__) && defined(__clang__)
    /* cpp initialization */
	extern unsigned int __FINI_ARRAY[];
	extern unsigned int __INIT_ARRAY[];
	extern void __libc_init_array(void);
	extern void __libc_fini_array(void);
	extern int atexit(void (*func)(void));
    atexit(__libc_fini_array);
    __libc_init_array();
#elif defined(__ghs__)

Lcf_Hightec_Tricore_Tc.lsl

The linker script should also be modified to accommodate the init and fini arrays. The .init_array sections should provide the init_array_start and init_array_end symbols and the padding required previously should be removed.

The same is true for the .fini_array section.

The final result should look like this:

    .init_array : ALIGN(8) {
    __INIT_ARRAY = .;
    PROVIDE_HIDDEN (__init_array_start = .);
    KEEP (*(.init_array*))
    PROVIDE_HIDDEN (__init_array_end = .);
    } > default_ram

    .fini_array : ALIGN(8) {
    __FINI_ARRAY = .;
    PROVIDE_HIDDEN (__fini_array_start = .);
    KEEP (*(.fini_array*))
    PROVIDE_HIDDEN (__fini_array_end = .);
    } > default_ram

_exit() function

An _exit() function should be present in the code, even if it is not used. For example Cpu0_Main.c is a viable option for placing the empty void _exit (void){}; function.

Build the project

Now, the project will use the HighTec LLVM compiler to build the application.

The final project content after a successful build is shown in the below figure.

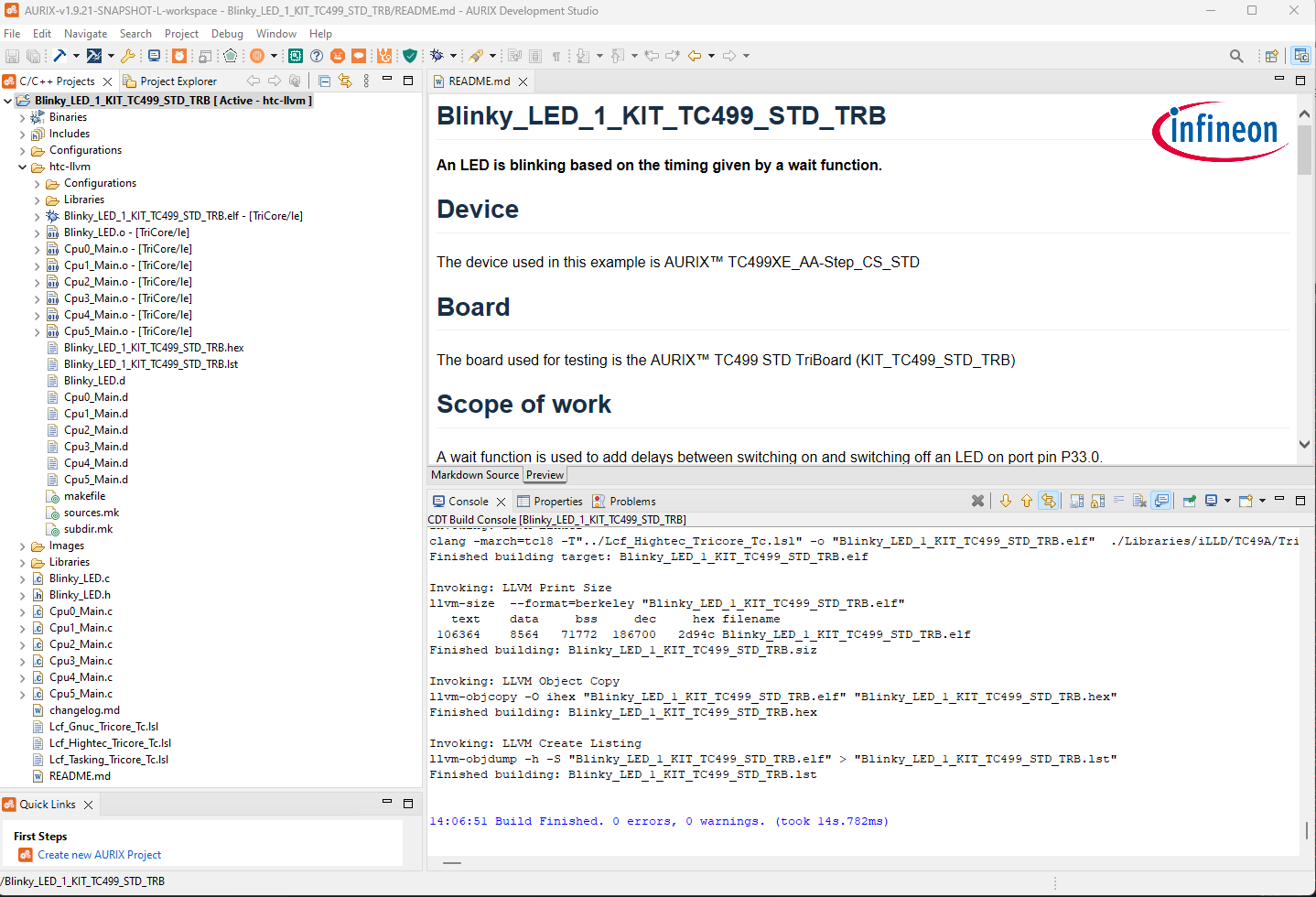

Fig. 22. Content of the imported Infineon project after a successful build

A complete project, run on a board.

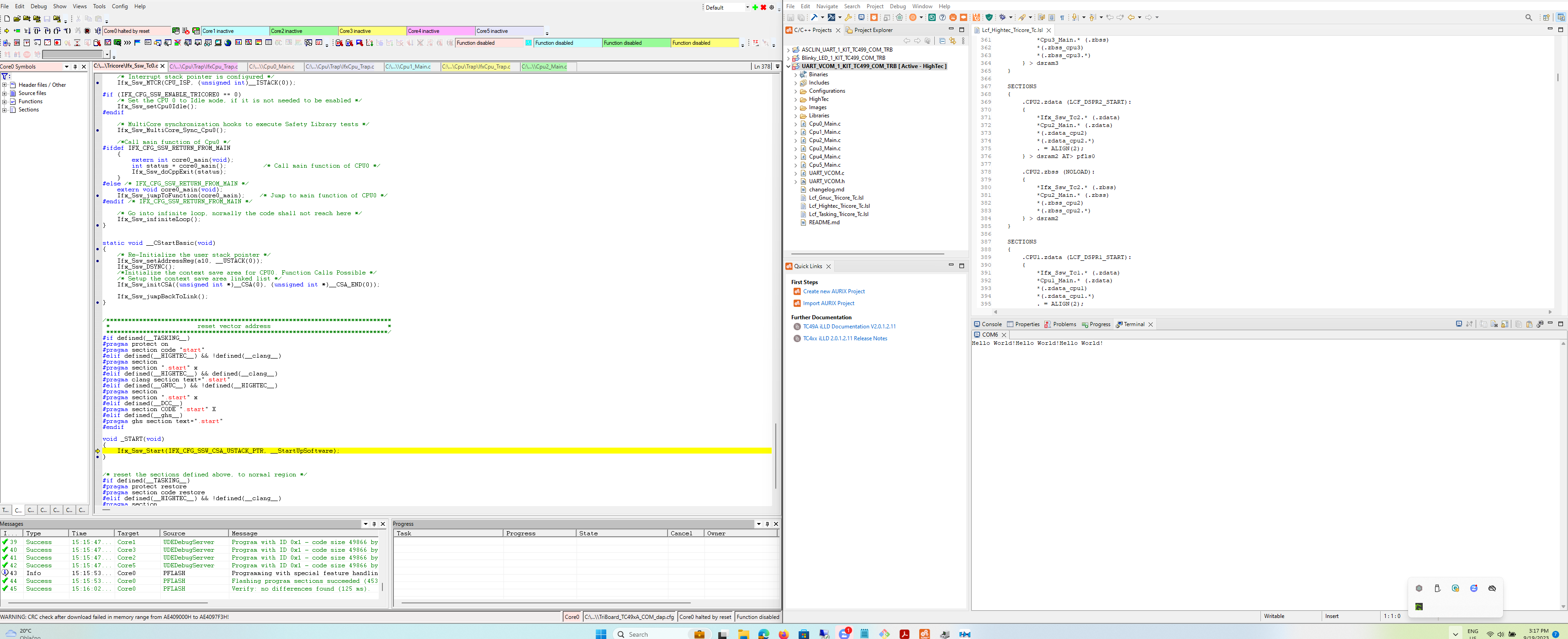

Fig. 23. UART_VCOM_1_ example run on board TC400_COM_TRB

Possible errors

.start section in the linker script

If the CPU startup code is being stripped or placed incorrectly during linking, update the KEEP directives in your linker script to include wildcard section matching:

Original Directive Updated Directive

Original Directive	Updated Directive
`KEEP (*(.start));`	`KEEP ((.start .start.));`
`KEEP (*(.start_cpu1));`	`KEEP ((.start_cpu1 .start_cpu1.));`

KEEP (*(.start));

KEEP ((.start .start.));

KEEP (*(.start_cpu1));

KEEP ((.start_cpu1 .start_cpu1.));

Apply this same wildcard pattern to all startup sections (.start_cpu0, .start_cpu1, .start_cpu2, etc.).

You can verify the section naming differences using this command:

llvm-objdump.exe -h .\your_executable_name.elf | grep "\.start"

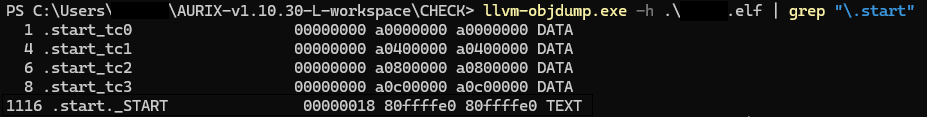

Fig. 24. Incorrect`symbols in llvm_objdump output

Fig. 25. Correct`symbols in llvm_objdump output

Missing System Call Functions

If the linker reports missing system calls (such as read, write, close, lseek, lseek64, fstat, or isatty), you need to provide dummy implementations for these functions.

Add #include <stdio.h> and stub definitions to your Cpu0_Main.c file:

#if defined(__HIGHTEC__)
#include <stdio.h>

ssize_t read(int fd, void *buf, size_t count){
    (void) fd;
    (void) buf;
    (void) count;
    return 0;
}
ssize_t write(int __fd, const void *__buf, size_t __nbyte) {
    (void) __fd;
    (void) __buf;
    (void) __nbyte;
    return -1;
}
int close(int fd){ (void) fd; return 0;}
int isatty (int fd){ (void) fd; return 1;}
off_t lseek(int fd, off_t offset, int whence){
    (void) fd;
    (void) offset;
    (void) whence;
    return (off_t) -1;
}
_off64_t lseek64(int fd, _off64_t offset, int whence){
    return (_off64_t) lseek(fd, (off_t) offset, whence);
}
int fstat (int fd, int *sbuf){
    (void) fd;
    (void) sbuf;
    return -1;
}
#endif
